Description

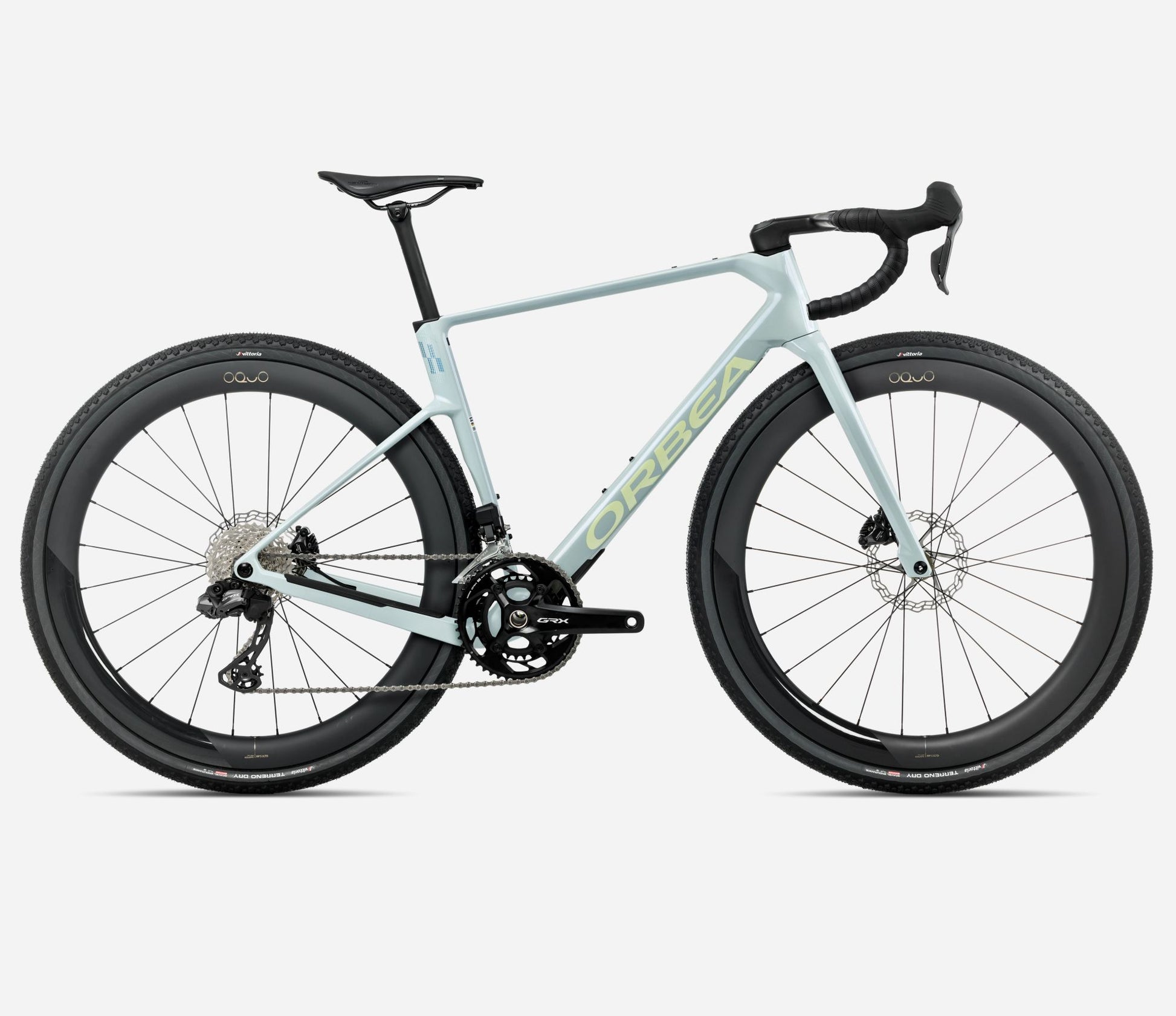

orbea terra carbon gravel bike Orbea Terra Race M20i LTD 2026 Frozen Concrete Gloss XSTerra Race is our lightweight carbon gravel racing bike, built for maximum speed and efficiency. BUILD KIT: Frame: Orbea Terra Carbon OMX Disc, monocoque construction, HS 1,5", BB386EVO, 1X chain guide, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout Fork: Orbea Terra ICR, full carbon, 1 1 8" 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1 Steerer tube: FSA 1 1 2" Integrated Aluminium Cup Crankset:
Terra Race is our lightweight carbon gravel racing bike, built for maximum speed and efficiency.
BUILD KIT:
-
Frame: Orbea Terra Carbon OMX Disc, monocoque construction, HS 1,5", BB386EVO, 1X chain guide, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout
-
Fork: Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1
-
Steerer tube: FSA 1-1/2" Integrated Aluminium Cup
-
Crankset: Shimano GRX RX820 31x48t
-
Shifters: Shimano GRX Di2 RX825
-
Cassette: Shimano Ultegra R8100 11-34t 12-Speed
-
Rear derailleur: Shimano GRX Di2 RX825
-
Front derailleur: Shimano GRX Di2 RX825
-
Chain: Shimano M7100
-
Handlebar: Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125
-
Brakes: Shimano RX820 Hydraulic Disc
-
Brakes configuration: N/A
-
Wheels: Oquo Road Performance RP50LTD
-
Tyres: Vittoria Terreno T30 Fine Loose Gravel Endurance G2.0 700x40c
-
Front wheel axle: Orbea Thru Axle 12x100mm M12xP1 Lite
-
Rear wheel axle: Orbea Thru Axle 12x142mm M12xP1 Lite
-
Seatpost: OC Performance XP10 Carbon, 27.2mm, Setback 0
-
Saddle: Selle San Marco Shortfit 2.0 Start Up Off Road Xilite
-
Handlebar tape: Orbea Anti-Slippery/Shock Proof
-
Hub: OQUO Q10
SIZING: Orbea recommends the following sizes based on rider height
-
XS: 5'1" – 5'5"
-
SM: 5'6" – 5'8"
-
MD: 5'8" – 5'10"
-
LG: 5'11" – 6'1"
-
XL: 6'1" – 6'3"
-
XXL: 6'4" – 6'9"
